BLOOM CASTING — HIGH-PERFORMANCE, POWERFUL MACHINES TO MEET THE MARKET REQUIREMENTS
India Powermelt Technologies offers bloom casters which combine metallurgical and technical expertise in innovative production equipment, manufacturing processes and control systems.
Thanks to the connect and cast principle machines from India Powermelt Technologies have the shortest ramp-up time on the market. No matter if you build up a new plant or like to modernize your existing plant. This has been proven in more than 100 installations. We support our customers not only during the project phase: We are there throughout the integration phase, into full production and beyond – thanks to our lifecycle management services.
BLOOM CASTING
In the intensely competitive environment of the steel industry, a high degree of flexibility, product quality and customer orientation is absolutely essential for lasting success. In the process itself, casting speeds have been rising and the spectrum of possible dimensions and materials have been expanding continually.
Through the use of technological packages and consequently following our connect & cast principle, we achieve the shortest start-up times in the industry. Our modular solution approach ideally meets all technological requirements and customer demands, for both new and existing casters and for the production of carbon, stainless and special steel grades.
The ever-greater demands for quality and the ongoing development of steel grades mean that the quality level at every stage of the casting process will continue to grow in importance in the future. As an example the Dyna Flex oscillation technology from India Powermelt Technologies represents the latest generation of oscillation systems and saves money in operation compared to other systems. The hydraulic oscillation drive system enables the dynamic adjustment of frequency, stroke, and wave form during casting for optimized negative strip time. The wear-free leaf-spring oscillator guidance system guarantees the highest guidance accuracy, outstanding operational safety, and low maintenance costs. The design allows a quick coupling of all media supplies to the mold and automatically completes the alignment of the mold and oscillator.
India Powermelt Technologies has the metallurgical experience and technical expertise to supply cutting-edge technology for maximized bloom caster performance, production and upgrading.
Further highlighted products:
- Lev Con: advanced mold level control with upmost precision under all casting conditions
- Dia Mold: copper tube for rapid casting of rounds and square
- Dyna Jet: high-precision secondary cooling spray nozzles
- Dyna Tac: high temperature casting package
- OPAL: integrated laser measuring system
- Dry Star Spiral: strand guide roller for high temperature casting
ELECTRICS AND AUTOMATION FOR CONTINUOUS CASTING
India Powermelt Technologies offers a comprehensive range of process control solutions, technological packages and process optimization models that cover all aspects of the continuous casting process.
An outstanding example for optimizing the casting process with automation is the new model suite comprising Dyna Phase, Dynacs 3D and Dyna Gap Soft Reduction 3D.
In order to calculate a 3-dimensional temperature profile of the strand material properties like enthalpy, solid fraction, density and conductivity as a function of the temperature have to be known. The traditional approach is to define these thermo-physical properties for steel grade groups. With Dyna Phase the material properties are derived online from the actual steel analysis.
The Dynacs 3D advanced secondary cooling model calculates in real time a full three-dimensional temperature profile of the hot strand. Dynacs 3D accurately assesses the heat transfer from the slab surface and calculates the water flow setpoints to assures a stable strand surface temperature profile even in transient casting conditions
On the basis of the online information provided by Dynacs 3D, the Dyna Gap Soft Reduction 3D model dynamically calculates the setpoints of the adjustable roll gap. Supervision of the roll engagement, depending on the state of solidification (liquid, mushy or solid) and the calculated strand-thickness profile, is a decisive factor for precise roll adjustments and thus improved product quality. An optimized roll engagement also reduces excessive forces on the strand and decreases roller wear.
Further highlighted technological packages and process experts:
- Lev Con: advanced mold level control with upmost precision under all casting conditions
- Mold Expert: more than just a breakout pre-detection system
- Quality Expert: a milestone in improved quality supervision, quality prediction and control
- Yield Expert: cut length/weight optimization for minimized scrap and optimized yield
- Intermix Expert: precise determination of the mixing area of different grades on the strand
- Nozzle Expert: highest accuracy in detecting clogged nozzles and broken hoses
- Speed Expert: optimal casting speed for increased throughput and improved quality
- Dyna Flex: hydraulic Oscillator for perfect surface quality
TECHNOLOGY AND MODERNIZATION PACKAGES
Get striking results with incremental investments
| Name | Short Description |
|---|---|
| DynaFlex | Hydraulic mold oscillator for continuous casting |
| Mold Checker | 3D measurement for the inner shape of continuous casting molds |
| Powder Expert | Feeder with high precision powder control in the caster mold |
| Mold Expert Fiber | Live view into caster mold based on fiber optic technology |
| ShapeMon Billet Bloom | Measuring solution for weight and geometry for billets and blooms |
| LiquiRob for Casting | Robotic solution for continuous casting machines |
| Automatic Thermocouple Checker | Automatic sensor test for breakout prediction system for continuous casting |
| LevCon | Mold-level control with highest precision for continuous casting |
| OsciMon | Online monitoring of mold oscillation in continuous casting machines |
| OsciChecker | Portable device for mold oscillation measurement in continuous casting machines |
| Lance Checker | Test and diagnosis system for liquid iron and steel measuring devices |
| CC Optimizer | Process optimization (Level 2) for continuous casting |
| Mold Expert | Breakout pre-detection and mold monitoring |
| Scrap Torch Cutting Machine | Environmentally clean scrap processing |
| Torch Cutting Machine | Fully integrated and optimized torch cutting solution |
THE CONTINUOUS CASTING MACHINE

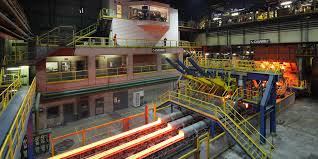

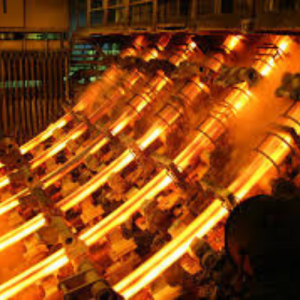

The Continuous Casting Machine / Billet Casting Machine / Concast Machine is an equipment to convert liquid steel into cast semis of the desired size.
Molten Steel from the furnace is poured at correct temperature into the Ladle and the Ladle Slide Gate is opened so as to allow the liquid metal to flow into the Tundish, which then allow it to the mould assembly through refractory nozzle. A tundish car is provided to transport the tundish to the Casting Station. Steel stream from the tundish is taken through the mould assembly which houses the curved copper mould tube to give the required shape of the section being cast.
